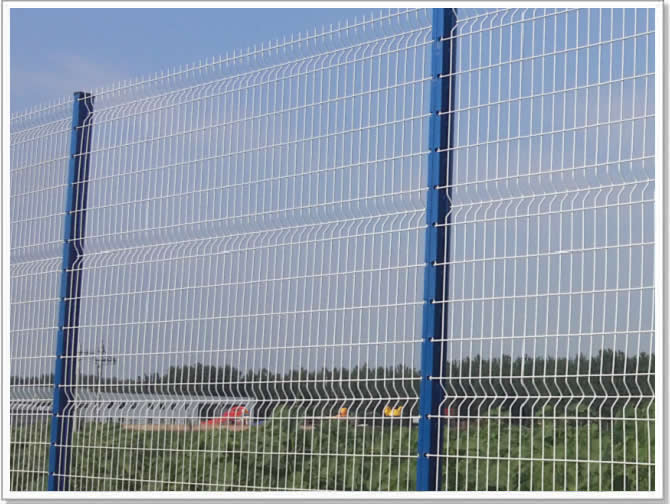

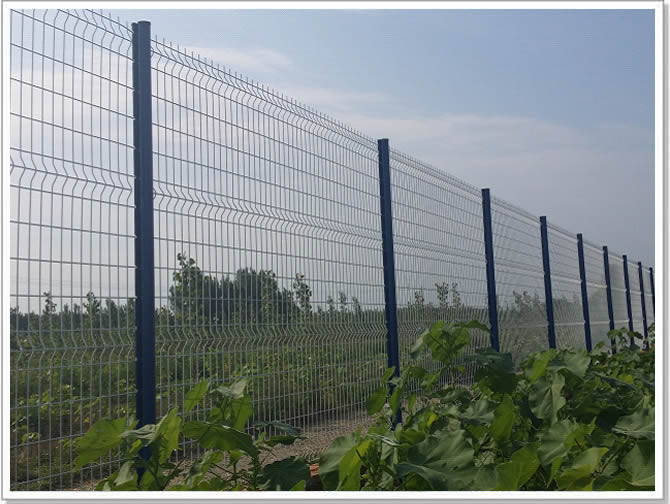

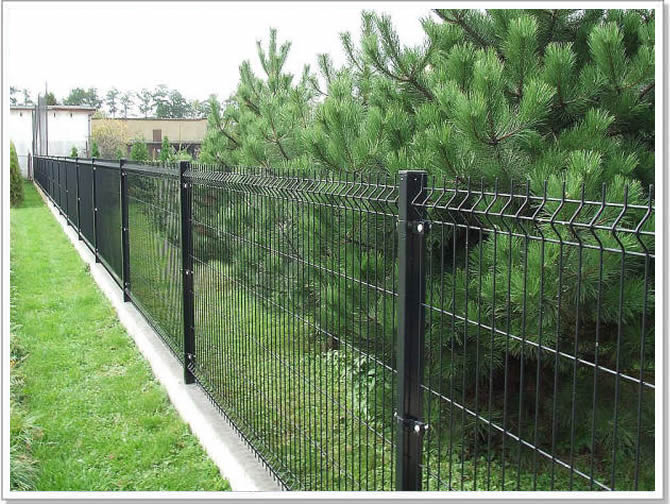

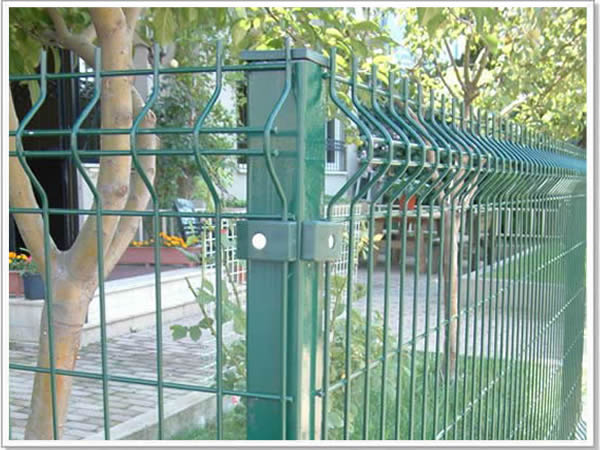

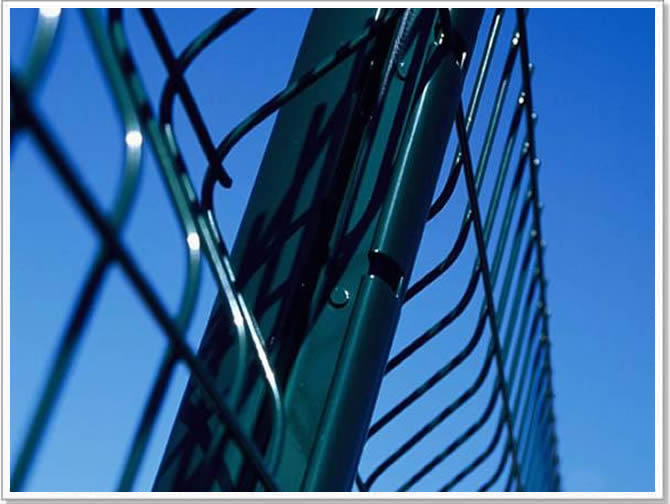

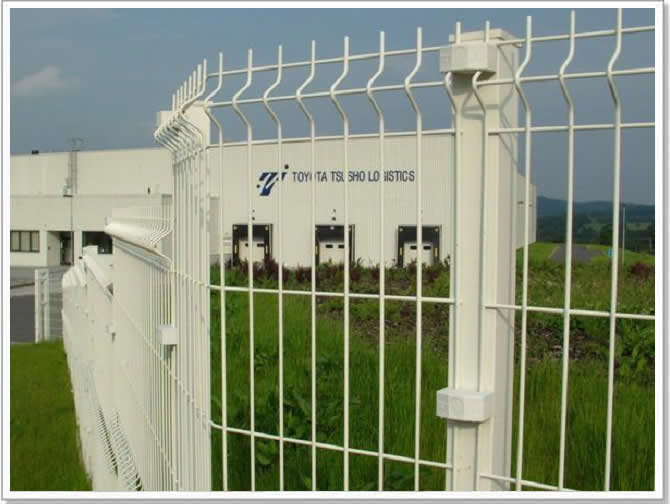

V Beam Welded Mesh Fence

V Beam Welded Mesh Fence Product Description

It is also called "Curved Welded Mesh Fence",or"Bending Welded Mesh Fence"

1. Material: Low-carbon steel wire, Galfan wire

2. Wire Diameter: 2mm-6mm

3. Mesh Size: 50x200mm, 60x150mm, 50x100mm etc

4. Panel Size: - Height: 1000mm ~ 2500mm

              - Width: 1800mm ~ 3000mm in common

5. Surface Treatment: Electro-galvanized, Hot-dipped galvanized, PVC coated,PVC  Powder coated

6. Applicable Post: Round Post; Square Post; Easy Post



- V Beam Welded Mesh Fence Application:

1. Public building fence

2. Private place fence, Where visibility is desirable

3. Residential perimeter fence

4. In Parks, Zoos and nature reserves



- V Beam Welded Mesh Fence Advantage:

1. Vandal resistant, Low maintenance

2. Strong and reliable security

3. Simple structure, Attractive appearance

4. Easy installation, Convenient transport

V Beam Welded Mesh FenceV Beam Welded Mesh FenceV Beam Welded Mesh Fence V Beam Welded Mesh Fence V Beam Welded Mesh Fence V Beam Welded Mesh Fence V Beam Welded Mesh Fence

Height X Width mm
Mesh Opening mm
Diameter mm
Number of V shapes
Post of Height mm
630x2500
50x200
4/5
2
1100
830x2500
50x200
4/5
2
1300
1030x2500
50x200
4/5
2
1500
1230x2500
50x200
4/5
2
1700
1430x2500
50x200
4/5
2
1900
1530x2500
50x200
4/5
3
2000
1630x2500
50x200
4/5
3
2100
1730x2500
50x200
4/5
3
2200
1830x2500
50x200
4/5
4
2300
1930x2500
50x200
4/5
4
2400
2030x2500
50x200
4/5
4
2500
2230x2500
50x200
4/5
4
2700
2430x2500
50x200
4/5
4
2900 or 3000
