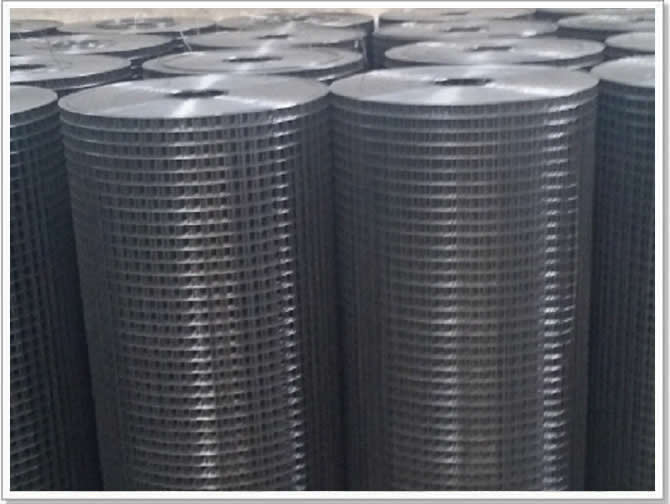

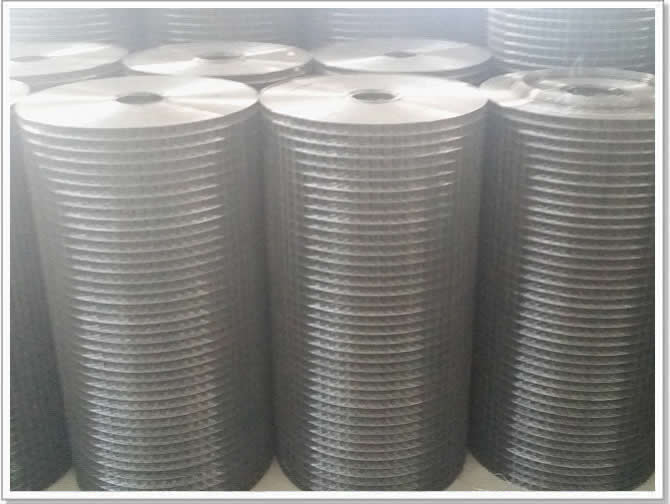

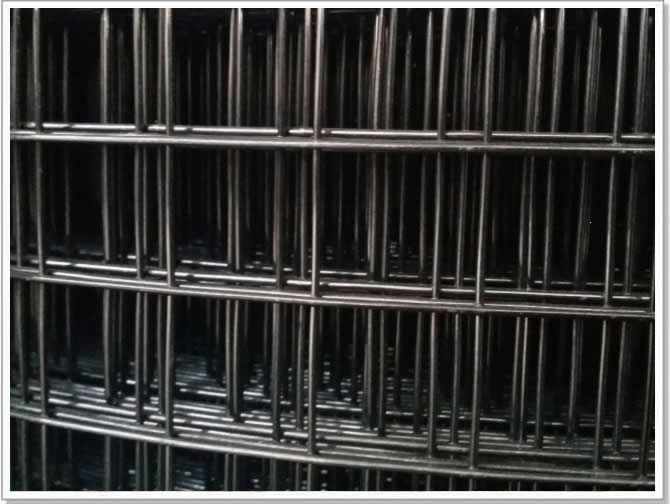

Black Welded Wire Mesh

Black welded wire mesh is made of high quality black wire and black anneal wire. It has flat surface, uniform mesh size, firm welding spot.

Product features

The material is without any surface treatment. The cost of black welded wire mesh is lower than galvanized welded wire mesh. And we paint oil on the mesh. So it is not easy to rusty.

Product application

Black welded wire mesh is widely used industries, buildings, transportations, mine etc; Black anneal wire welded mesh is welding by  vacuum annealing wire. The material is soft. This kind mesh is easy to press forming, And taking surface treatment like, electrical galvanizing, hot deep galvanizing, PVC powder painting,Chrome plating and so on. It was used as machine guarding, poultry cage, food basket, waste basket and others.

Black welded wire mesh Black welded wire mesh Black welded wire mesh Black welded wire mesh

Specification List of Black Welded Wire Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 21,22,23,24,25,26,27
2.5/8" x 2.5/8" 7.94mmx7.94mm 20,21,22,23,24,25,26
3/8” x 3/8” 10.6mm x 10.6mm 19,20,21,22,23,24,25
1/2” x 1/2” 12.7mm x 12.7mm 16,17,18,19,20,21,22,23,24,25,26,27
5/8” x 5/8” 15.875mm x 15.875mm 16,17,18,19,20,21,22,23,24,25
3/4” x 3/4” 19.1mm x 19.1mm 14,15,16,17,18,19,20,21,22,23,24,25
6/7” x 6/7” 21.8x21.8mm 14,15,16,17,18,19,20,21,22,23,24,25
1" x 1/2" 25.4mm x 12.7mm 14,15,16,17,18,19,20,21,22,23,24
1" x 1" 25.4mmX25.4mm 14,15,16,17,18,19,20,21,22,23
1-1/4" x 1-1/4" 31.75mmx31.75mm 14,15,16,17,18,19,20,21,22,23
1-1/2" x 1-1/2" 38mm x 38mm 13,14,15,16,17,18,19,20,21
2" x 1" 50.8mm x 25..4mm 13,14,15,16,17,18,19,20,21
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16,17,18,19,20
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 2.1m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
