PVC Coated Welded Mesh

PVC welded wire mesh is welded by black wire, galvanized wire and hot deep galvanized wire. The surface of mesh need sulfur treatment. Then painting PVC powder on the mesh. The characters of this kind mesh are strong adhesion, corrosion protection,acid and alkaline resistance, aging resistance, non-fading, UV resistance, smooth surface and bright.

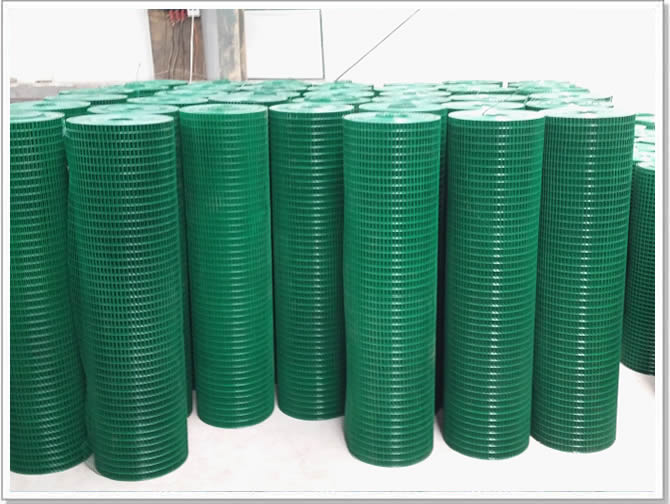

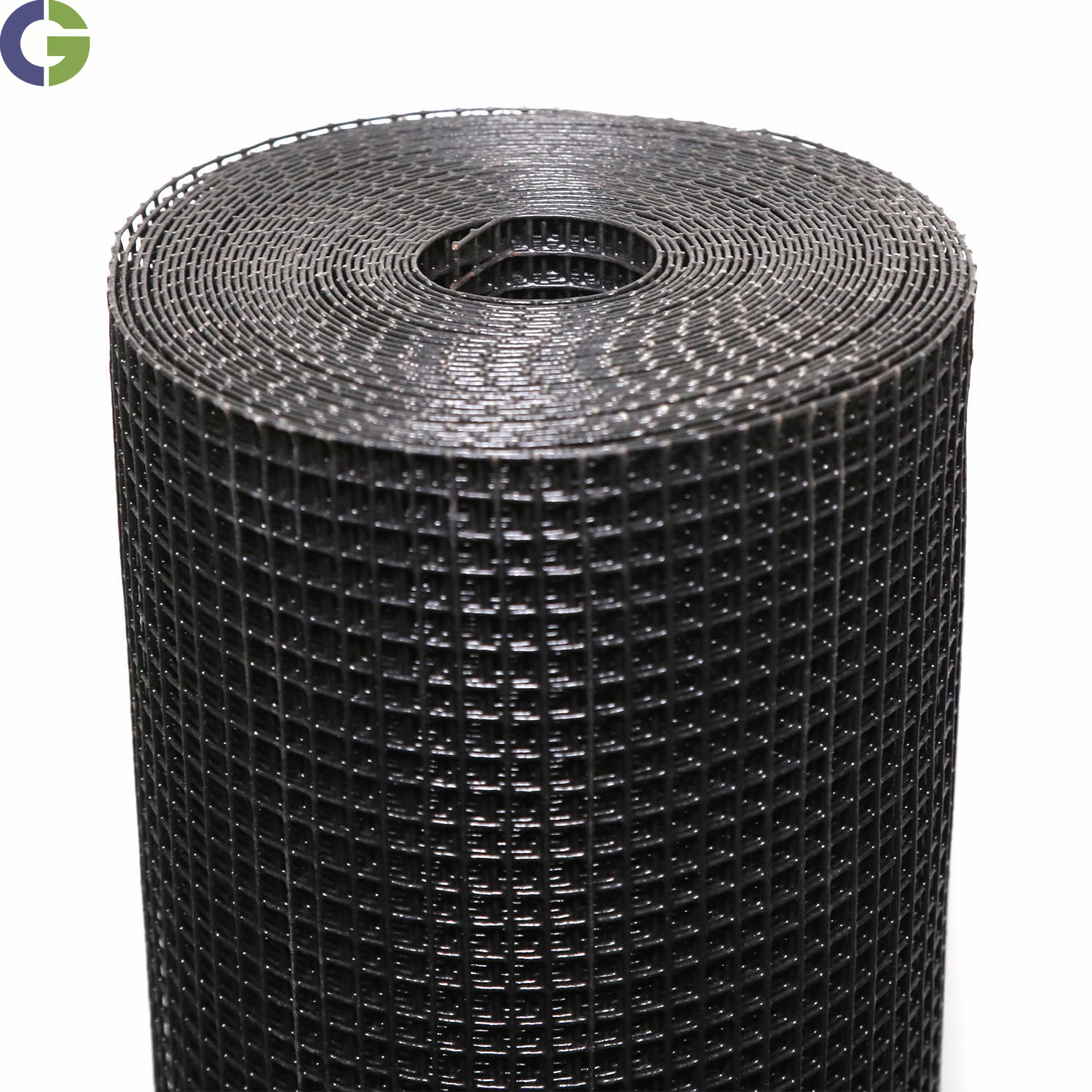

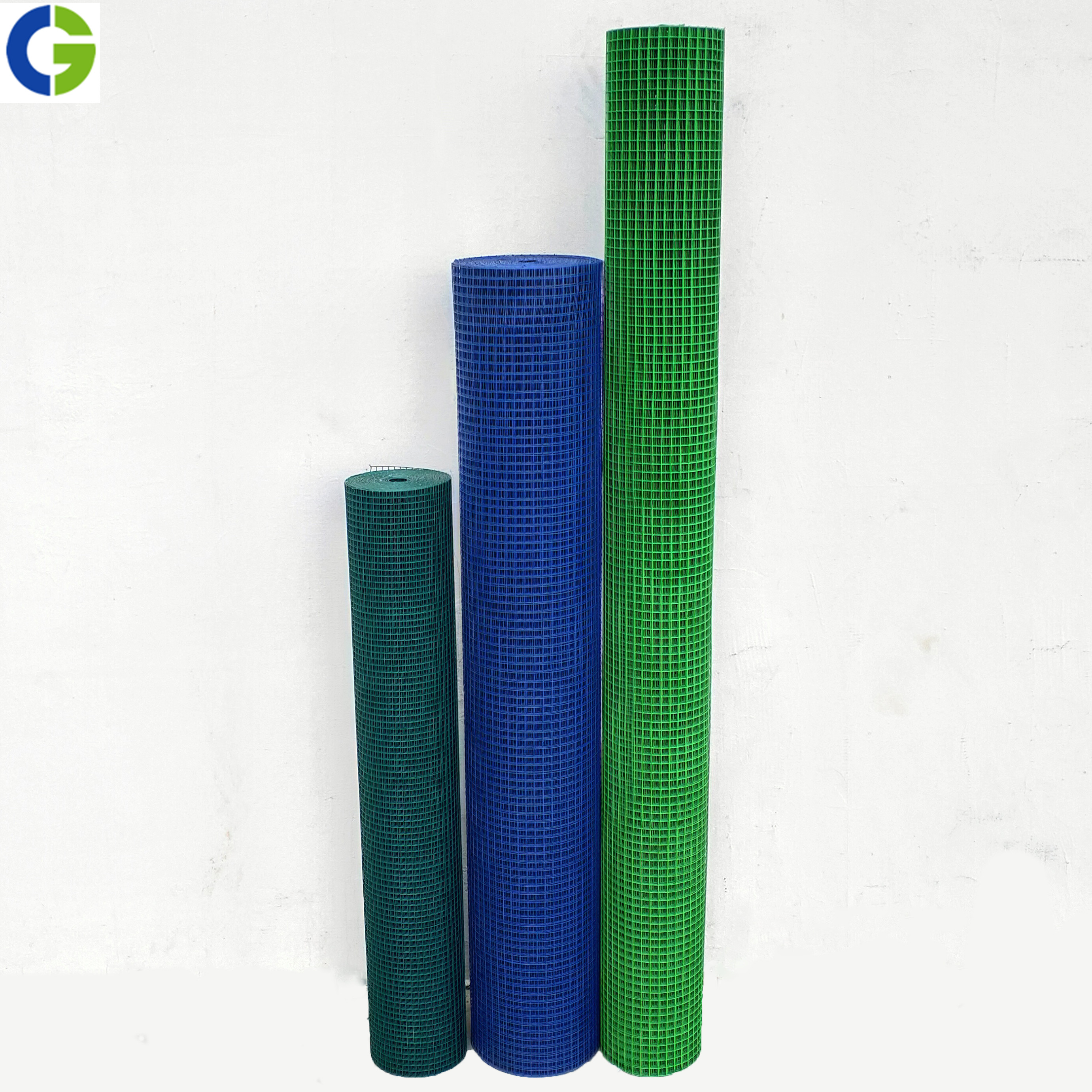

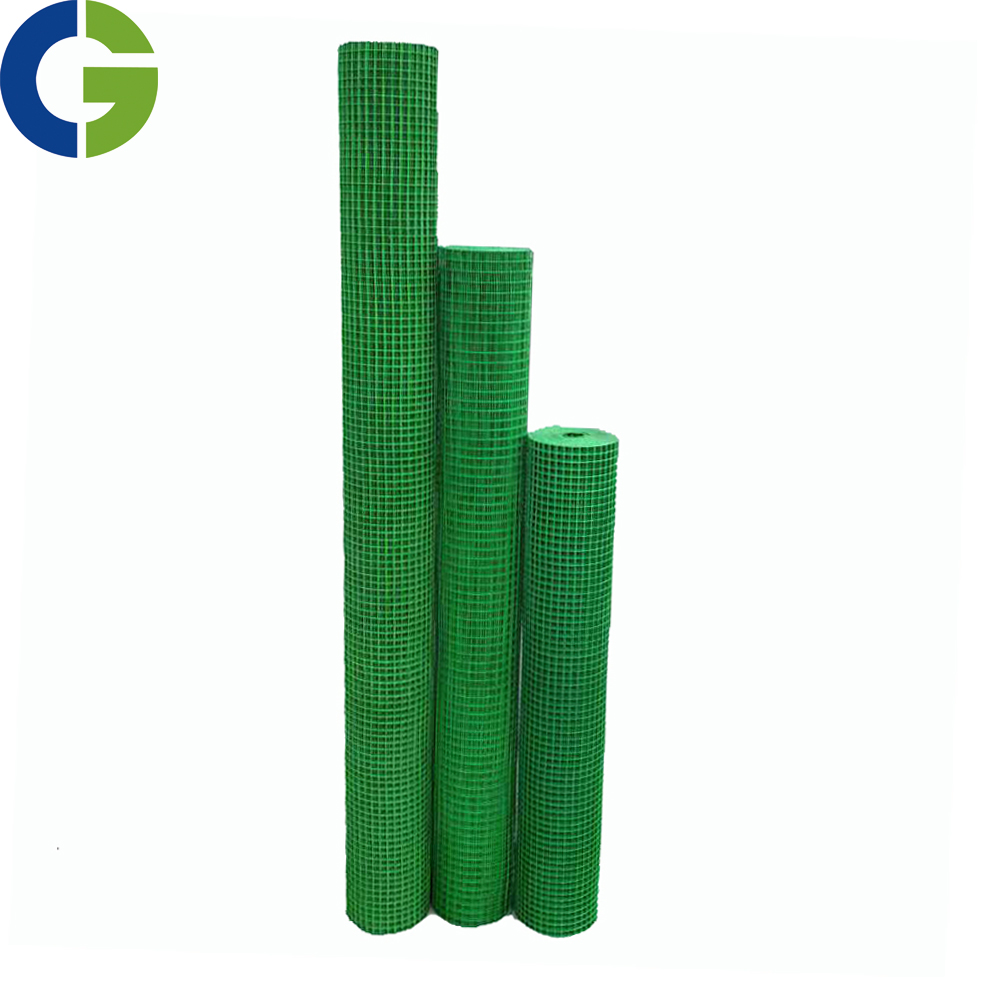

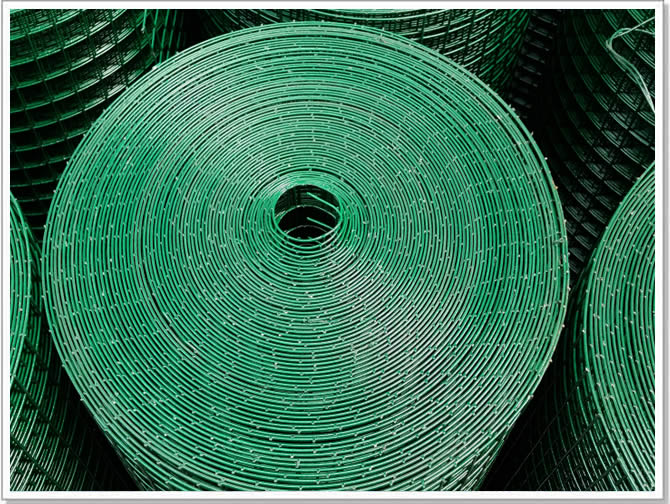

Application: Suitable for fencing houses and properties, companies, gardens recreation areas, parks. All kinds of colors can be coated according to customers' special requirements. PVC coated welded wire mesh is supplied in rolls or panels. Colors can be green, black, white, yellow,red,bule,etc.

PVC welded wire mesh PVC welded wire mesh PVC welded wire meshPVC welded wire meshPVC welded wire meshPVC welded wire mesh

Specification List of PVC Welded Wire Mesh
Opening Wire Diameter<BWG> Wire diameter after PVC coated
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 21,22,23,24,25,26, 0.3mm
2.5/8"x2.5/8" 7.94mmx7.94mm 20,21,22,23,24,25 0.3mm
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22,23,24,25 0.3mm
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23,24 0.35mm
5/8" x 5/8" 15.875mm x 15.875mm 16,17,18,19,20,21,22,23 0.35mm
3/4" x 3/4" 19.1mm x 19.1mm 15,16,17,18,19,20,21,22,23 0.4mm
6/7” x 6/7” 21.8x21.8mm 15,16,17,18,19,20,21,22 0.4mm
1" x 1/2" 25.4mm x 12.7mm 15,16,17,18,19,20,21,22 0.4mm
1" x 1" 25.4mmX25.4mm 14,15,16,17,18,19,20,21,22 0.45mm
1-1/4"x 1-1/4" 31.75mmx31.75mm 14,15,16,17,18,19,20,21,22 0.45mm
1-1/2"x1-1/2" 38mm x 38mm 14,15,16,17,18,19,20 0.5mm
2" x 1" 50.8mm x 25.4mm 14,15,16,17,18,19,20 0.5mm
2" x 2" 50.8mm x 50.8mm 13,14,15,16,17,18,19 0.5mm
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 2.1m
2,Special sizes available at request

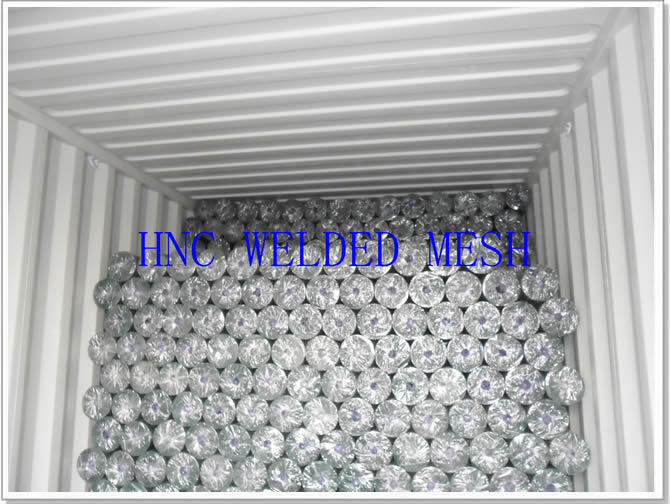

3,Packing: in waterproof paper in rolls. Custom packing available at request.
