Crowd Control Barrier

Product Overview

Crowd Control Barrier, also commonly known as crowd control metal barricade or temporary isolation fence, is a modular quick-connect barrier for crowd order management. It is integrally welded from Q195 low-carbon steel tubes. Barriers interlock with hooks on both ends, requiring no foundation drilling or screw fixing to rapidly form continuous long isolation barriers. Widely applied for crowd diversion, area separation, on-site order maintenance and construction site enclosure at large-scale events, this product features easy assembly & disassembly and repeated cyclic use, making it the most commonly used temporary protective facility for competitions, exhibitions, security activities and municipal construction. Standard models are in stock for fast delivery, while full customization on overall size, pipe specification and structure is available on demand.

Detailed Product Specifications (Matching Parameter Table)

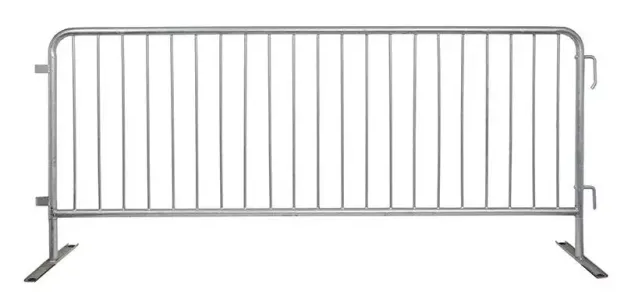

Three Optional Foot Types for Different Site Conditions

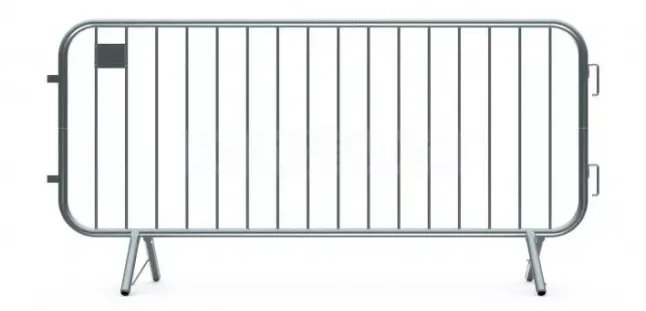

Flat feet: perfectly fits flat ground without scratching floor tiles or epoxy coating, the top choice for shopping malls, indoor exhibition halls and show venues. Bridge feet: wider supporting span and lower center of gravity, preventing side tipping on slightly bumpy outdoor ground. Tube feet: triangular mechanical support structure with superior impact and wind resistance, specially designed for large-scale events and high-intensity crowd control scenarios with dense pedestrian flow.

Three Types of Surface Treatment (Consistent with Table List)

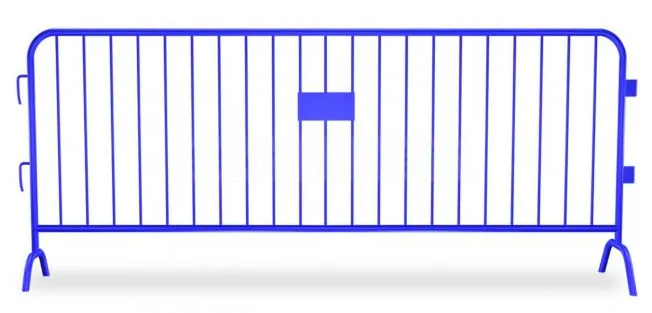

1. Painted after welded

   After welding, the whole product is polished and derusted, then coated with anti-rust primer plus top finish paint. It is cost-effective with bright & eye-catching colors, suitable for short-term indoor activities and one-off temporary isolation projects, with flexible color adjustment.


2. Powder coated after welded

   The finished welded barrier goes through rust removal and phosphating pretreatment, then electrostatic powder spraying followed by high-temperature curing. The coating boasts strong adhesion, scratch resistance, anti-fading and UV aging resistance, keeping intact color and easy cleaning for long-term outdoor exposure. It is the mainstream surface treatment for export business.


3. Hot-dipped Galvanized

   The whole finished barrier is fully immersed in high-temperature zinc bath for hot-dip galvanization. With sufficient zinc layer thickness, it completely isolates moisture, salt and humid air to deliver top-tier anti-rust & anti-corrosion performance. Perfect for coastal salt-spray environment, year-round outdoor placement on construction sites and other harsh working conditions with maximum service life.



Premium Product Details

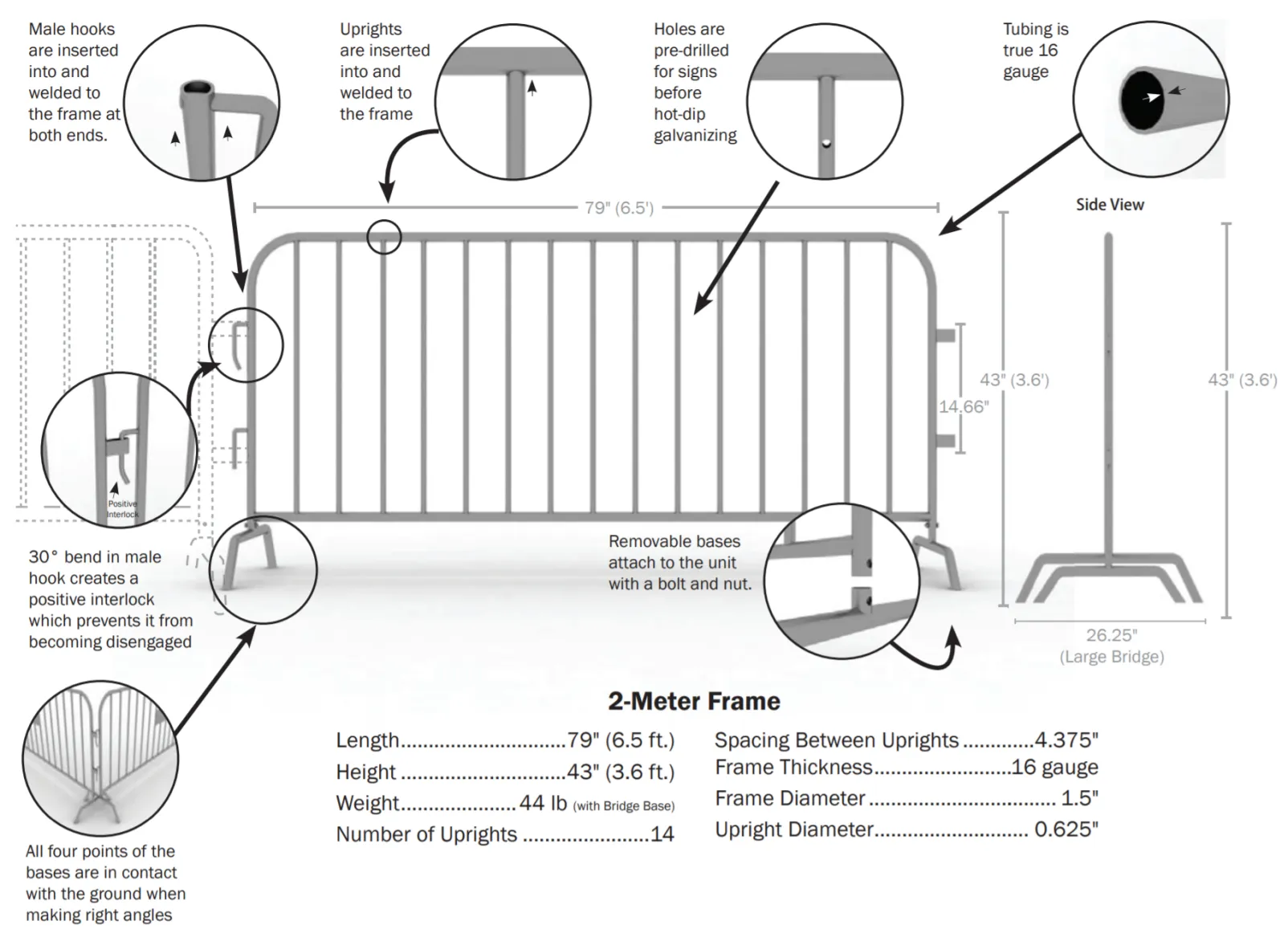

1. Robust Full Weld Construction Full penetration welding between outer frame and all inner pickets delivers full, smooth solder joints free of cold solder, missing welds and slag burrs. Leveraging the excellent weldability of Q195 steel, the whole structure maintains high integrity, resisting weld cracking and deformation under crowd squeezing and minor impact with reliable anti-shock stability.
2. Integrated Interlocking Hooks, Tool-Free Assembly One-piece bent matching hooks on both sides directly clip into adjacent barricades for fast assembly with narrow connecting gaps. Linked panels share force as a whole to prevent single-panel tipping, and no wrenches, screws or other auxiliary tools are needed for assembly and disassembly.
3. Pipe End Sealing for Extra Rust Prevention Pipe ends are sealed to stop rainwater and moisture entering tube cavities, avoiding internal rust expansion and pipe cracking, so as to extend the overall service life of barricades for long-term use.
4. Rounded Frame Corners for Higher Safety All four corners of outer frames are bent into rounded arcs with no sharp edges or burrs, preventing pedestrian scratches and bumps, complying with safety specifications for public place facilities.
5. Stackable Design to Save Storage & Logistics Cost Uniform panel shape allows multi-layer stacking when idle, minimizing storage occupation. High container loading rate cuts long-distance transportation and warehousing expenses greatly, ideal for bulk stock and turnover operation of barrier rental enterprises.

Application Scenarios

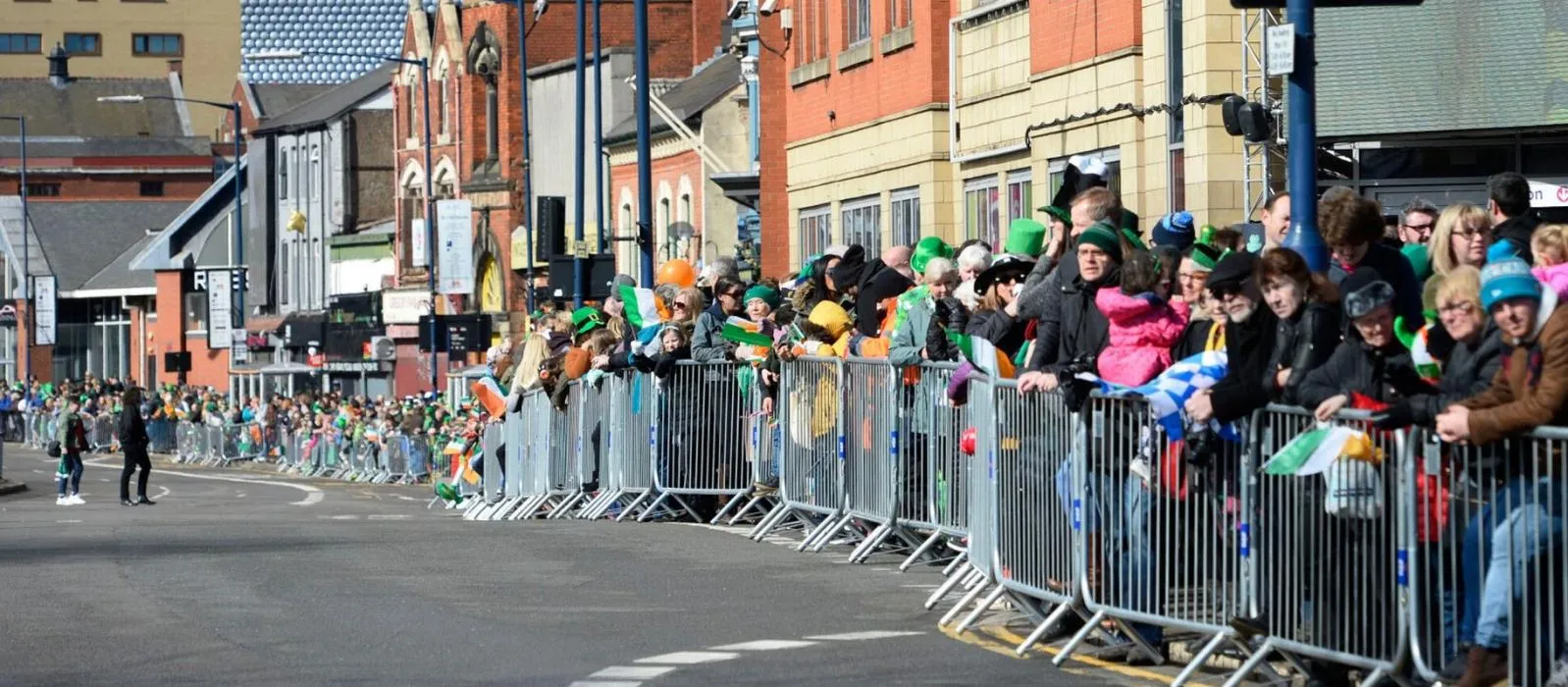

1. Large-scale cultural & sports events: concerts, music festivals, sports matches, city marathons and recreational festivals for queuing guidance, audience zone isolation and stampede prevention.
2. Commercial exhibition activities: expos, auto shows, mall promotions and new product launches to design visiting routes, divide independent exhibition areas and separate dedicated passageways.
3. Municipal road engineering: road emergency repair, pipeline renovation, road occupation construction and temporary traffic diversion fencing to isolate hazardous construction zones and block unauthorized access.

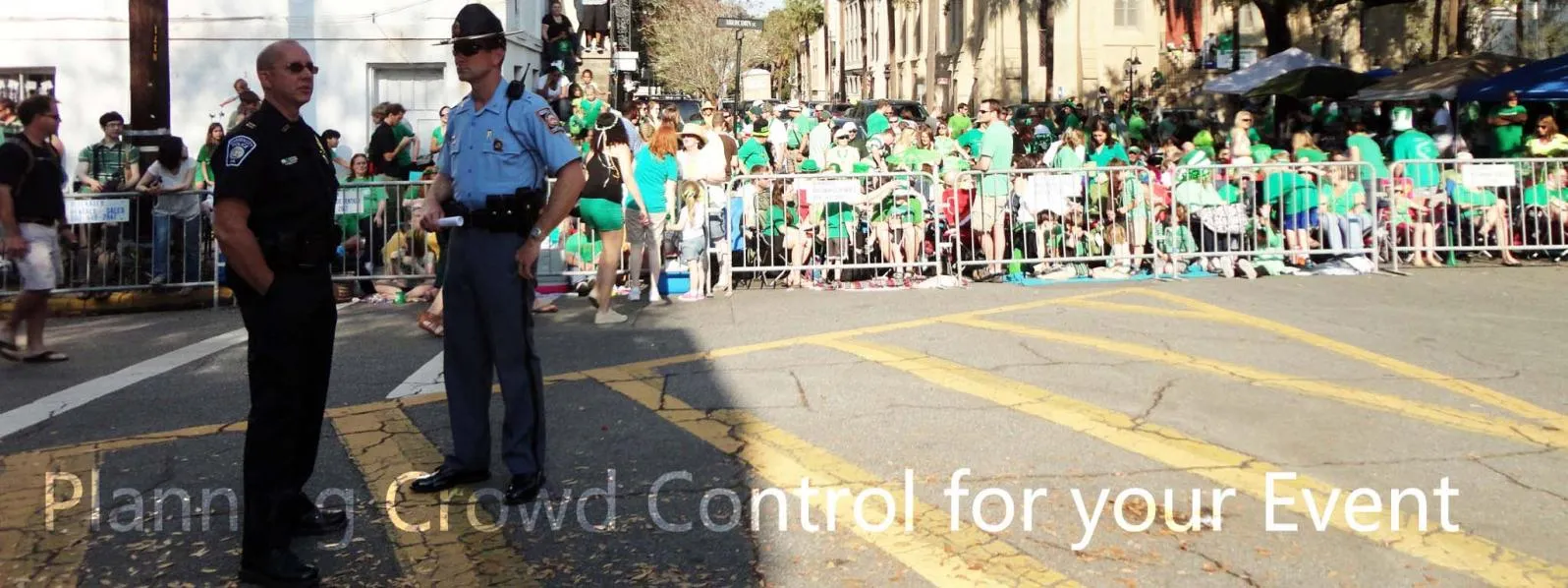

4. Public security management: layout of security check lanes, public assembly order control, emergency cordon isolation, pedestrian & vehicle diversion at entrances & exits.
5. Site zoning management: temporary partition for scenic spots, campuses, industrial parks and residential communities, as well as parking lot traffic organization.
6. Rental industry supplies: turnover inventory for event rental firms and security service companies with reusable value for fast return on investment.

Core Product Advantages

1. Comprehensive & Flexible Configuration Options Customizable outer frame pipe size, inner picket specification, bar spacing, overall dimension, foot style, color and anti-corrosion surface treatment. Standard items can be shipped from stock promptly, while bulk customized orders are acceptable to match varied budgets and working environments.
2. High Assembly & Disassembly Efficiency to Cut Labor Cost Modular clip-on interlock design enables one-person quick layout, assembly, dismantling and collection, greatly saving time for large-area enclosure installation and post-event removal.
3. Three Anti-Corrosion Solutions Adaptable to Global Climates Three coating options (paint coating, powder coating, hot-dip galvanizing) target short-term indoor use, medium & long-term outdoor exposure and harsh coastal high-salinity humid environment respectively, with selectable anti-rust grades for worldwide regional climate adaptation.
4. Cost-Effective Q195 Material with Reusability Q195 steel features easy welding and good toughness at lower raw material cost. Finished barricades are durable against wear for years of repeated assembly and turnover. Compared with disposable fencing materials, it delivers lower total long-term input cost, perfect for bulk purchase and rental operation.
5. Humanized Safety Structural Design Full rounded anti-collision design with adjustable picket spacing prevents people from climbing or squeezing through, while retaining good visibility for security staff to monitor conditions inside isolated areas clearly.
6. Export-Friendly for Smooth Shipment Standard dimensions fit standard sea containers. Manufacturing processes conform to usage habits of European and American overseas markets. Custom color & logo services are supported, with complete customs declaration documents available for long-term bulk procurement from overseas engineering contractors and event rental companies.
