Temporary Fence

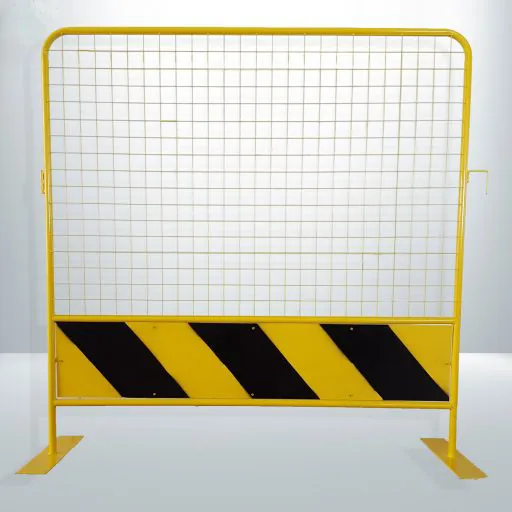

Welded Panels

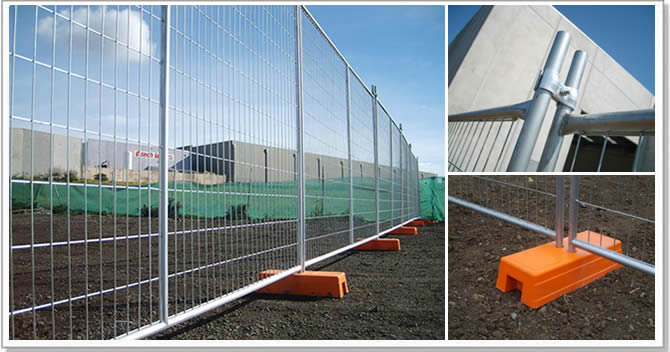

Temporary fence is used where building a permanent fence is either impractical or unneeded.Temporary fencing is used when an area needs barriers for the purposes of public safety or security, crowed control, theft deterrent, or equipment storage.

Application

  • Commercial Construction Sites
  • Domestic Housing Sites
  • Pool construction
  • Sporting events
  • Special events

Spcification

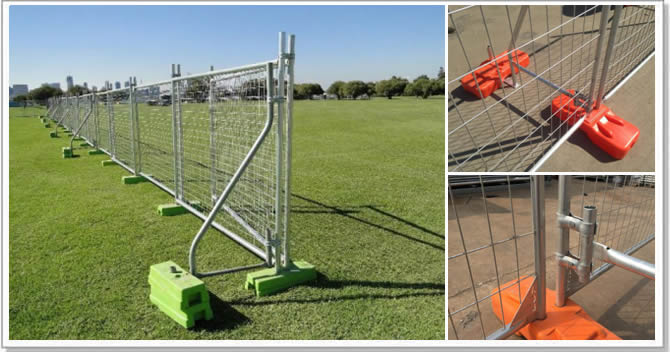

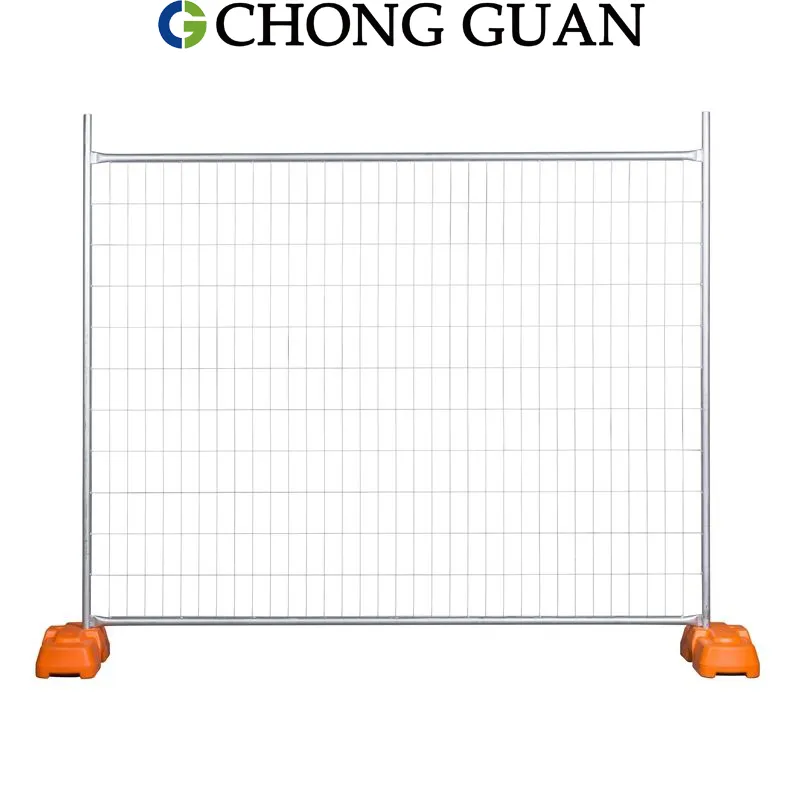

Detail of Temporary Fence Panel for Australia and New Zealand
Panel Size(mm) 1800(H)*2100(L),1800(H)*2400(L), 2100(H)*2400(L)
Opening(mm) 50x100 / 50x150 / 50x200 /60*150 / 75x150
Wire Dia.(mm) 3 /3.5 /4 mm
Panel Frame(mm) Φ32,Φ38 ,Φ42,Φ48 Thickness :1.2, 1.5, 1.6 ,1.8,2.0
Stay 1500mm,1800mm height
Feet/Block Plastic feet600*220*150 or steel feet
Clamp Pitch 75mm or 100mm
Finished of Panel hot-dipped galvanized, galvanized then Powder coated,galvanized material welded then paint welds
Note: The fence can be customized according to your required if above specification is not satisfied with you.

Surface Treatment Type

  • hot-dipped galvanized
  • galvanized then Powder coated
  • galvanized material welded then paint welds
  • Color range:you can choose what color you request. Other colours are available on request.

The powder material can make strongly resist the corrosive and ultraviolet radiation. the fence long life is more than 10years.

Suface Type Min Max
Hot dipped galvanized 50g/m2



650g/m2



Powder coating 60μm 120μm

Our Advantage

  • Advance machine for this fence,PVC coated line,powder coating line
  • All part do in our factory,quality control and delivery time is best
  • If need,free design,free sample can be provide
  • We have injection machine to do the block by ourself
  • 18years factory,11years export experience

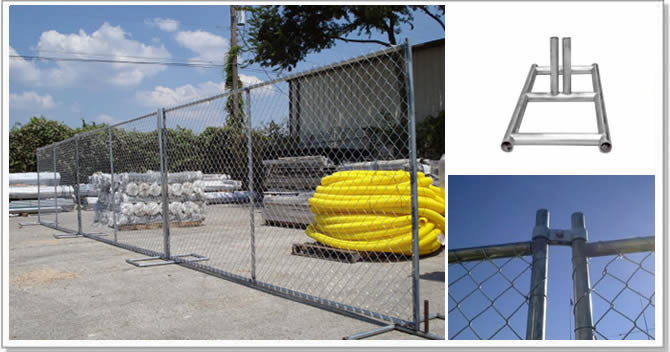

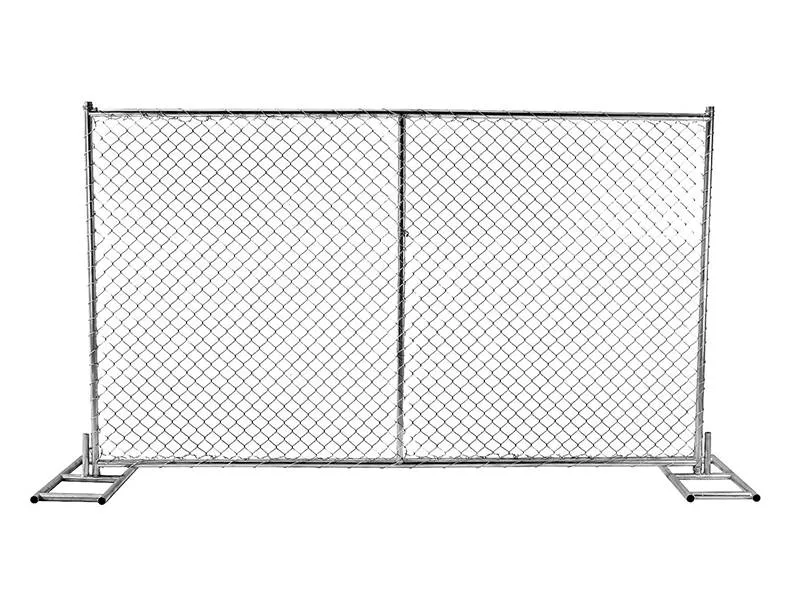

Chain Link Panel

Constructed to meet all required standards, these galvanised materials possess both long life and incredible utility. You can move them where you need them, over and over again. They even include a chain link fence infill designed to discourage climbing. Each panel stands 6ft meters high, tall enough to offer crowd control at public events and to discourage trespassing.

Specification

Temporary Chain Link Fence /Construction Fence Panels Spec
Tubing 1¼"(32mm) 1⅜"(35mm) 1½"(38mm) 1⅗"(40mm) 1⅝"(42mm) 1⅞"(48mm)and so on
Thickness of Tubing 16GA/ 1.6mm thick as a standard or customized owned size
Chain mesh aperture 2"x2"/(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜"x2⅜"(60mmx60mm) 2½"x2½"(63mmx63mm)
Height 4ft/1220mm 6ft/1820mm 8ft/2420mm
Width 12ft /3650mm was wide acceptance by market also 8ft 9ft 10ft 14ft
Panels Size 6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on
Diameter /Gauge 10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m
Base Optional 1 36" length x 30" width x 8"Height /914mmx762mmx203mm
Base Optional 2 36" length x 16" width x 8" Height /914mmx406mmx203mm
Base Optional 3 30" length x 18" width x 8" Height /762mm x460mm x203mm
Standard ASTM A392-06
Steel Galvanized Steel Construction
Finish Corrosion-Resistant Zinc Coating
Transport Packing Metal pallet Wrapped with Plastic
HDG zinc thickness 14 microns 100gram/SQM 28 microns 200 gram/SQM 42 microns 300 gram/SQM and 84 microns 600 gram/SQM

The metal clamp of Temporary Fence Panel:

The metal clamps are made from hot dipped galvanised steel ensure along life which make them the perfect way to secure the top of the fencing panels together.

The metal base of Temporary Fence Panel:

The metal base are made of hot dipped galvanized pipes, the T parts of the base is inserted into the base part and the worker will do both welding on both top and bottom part to make sure the T parts is strongly welded into the base, which make the base more strong.

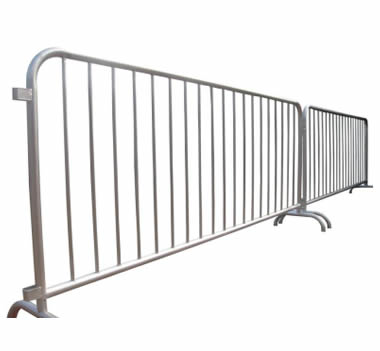

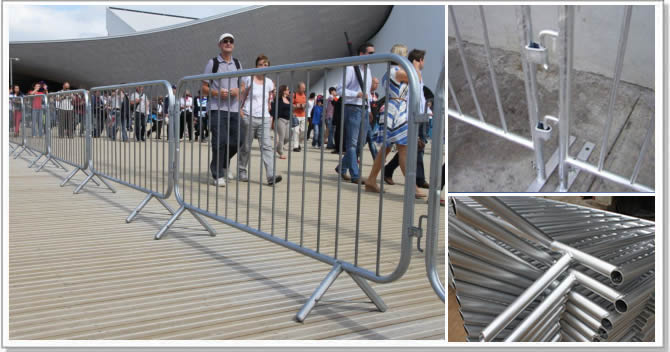

Crowd Control Barriers

Crowd control barriers (also referred to as crowd control barricades, with some versions called a french barrier or bike rack in the USA), are commonly used at many public events. Crowd control barriers have been designed for use at events that need to accommodate for a larger crowd. They are designed to physically discourage transgression and encourage directional order and crowd control. Their flat feet feature (to prevent trip hazard) provides a quick and efficient solution in any situation where you need to divert patrons and the general public away from a designated area!

Panel size 2.1*1.1m, 2.4*1.2m or as your requirement
Frame 2.0mm.25mm.32mm.40mm.42mm.48mm O.D
Infill Picket 14mm.16mm.20mm.25mm O.D
Spacing 60mm.100mm.190mm.200mm
Feet Detached, Flat, Bridge Type

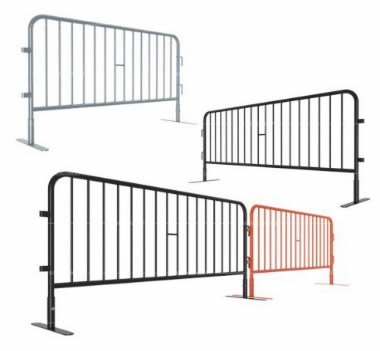

Flat feet barriers

  • HxL: 1.1x2.1m
  • Frame pipe: 25mm O.D.
  • Inner pipe: 20mm O.D.
  • Wall thickness, 2mm
  • Inner pipe spacing: 200mm
  • Metal detach feet: 600x60x7mm

Cross feet barrier

  • HxL: 1.1x2.5m
  • Frame pipe:
  • 40 O.Dx1.5mm
  • Inner pipe: 25O.Dx1.2mm
  • Inner pipe spacing: 200mm
  • Metal detach feet: With eyes&hook

Fence clamps and base

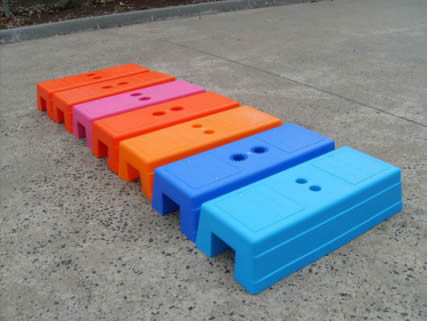

Product Name Colorful and anti-UV Plastic Concrete Temporary Fence Feet for Australia Temporary Fence
Material HDPE--a Flexible & Durable co-polymer polypropylene.
Feet Size 560x245x130mm,600x200x150mm,620x220x130mm,620x150x130mm.
hole Size 25mm,32mm,42mm,48mm etc
Color Red, Orange, Blue, Yellow, Pink etc.
Inner Filler Concrete and water
Sample Free
Customization Personalised name plates displaying your Company Name, Phone Number, Web Site Address etc can be supplied

Temporary fence Panel Fence Clamps / Fence Clips This fence clamps / fence clips usually used in connecting temporary fence.

NB Pitch Thickness Finish Suit tube
25mm 75mm or 100mm others standard 3.75mm,but oursare 4.00mm  can make as your requirments Hot dipped galvanized 32mm, 38mm, 42mm

Please fill in the forms below with your specific requirements.
We will contact you the soonest we can.
