Welded Mesh Panels for Floor Heating System

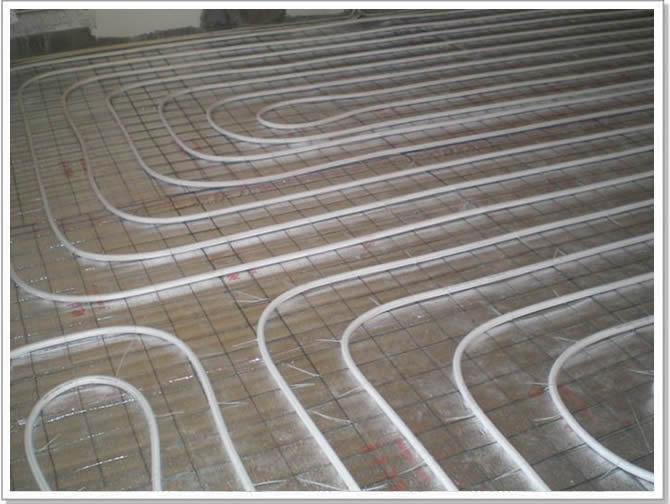

We can supply welded wire mesh fabrics for floor heating system. This kind of welded wire sheets are mainly used for installation & fixing of heating pipes or cables; strengthening heat isolation sheet materials; and/ or increasing the load-bearing of the surface floor.

Welded Mesh Panels for Floor Heating SystemWelded Mesh Panels for Floor Heating SystemWelded Mesh Panels for Floor Heating SystemWelded Mesh Panels for Floor Heating SystemWelded Mesh Panels for Floor Heating System

Floor Warming Mesh Panels
Specification Spmesh Wire Dia (MM) Aperture (CM) Net WT (KG)
1M×2M 2.00 10×10 1.06
1M×2M 2.00 15×15 0.67
1M×2M 2.00 20×20 0.56
1M×2M 2.50 10×10 1.65
1M×2M 2.50 15×15 1.04
1M×2M 2.50 20×20 0.88
1M×2M 3.00 10×10 2.38
1M×2M 3.00 15×15 1.5
1M×2M 3.00 20×20 1.27

Note:Special specifications can be customized.
