High Security 358 Fence

Introduction:

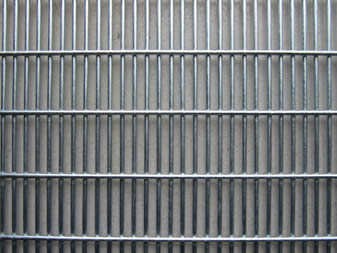

358 Wire mesh fence also known as " PRISON MESH "or "358 security fence", it is a special fencing panel. ‘358' comes from its measurements 3" x 0.5" x 8 gauge which is approx. 76.2mm x 12.7mm x 4mm in metric. It is a professional structure designed combined with an steel framework coated with zinc or RAL color powder.

358 security fences are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools. 358 fences are recognized as one of the most difficult to break through the barrier, because it is difficult to climb. It is called security fencing and high- strength fencing. 358 security fencing panel can be bent in part to enhance the aesthetic effect.

While 3510 Security Fencing has many of the attributes of 358 Security Fencing and its main strength is it's lighter. Using 3mm wire instead of 4mm allows even better visibility allowing a wider variety of applications. It’s lighter and cheaper so it's ideal for commercial applications.

Features:

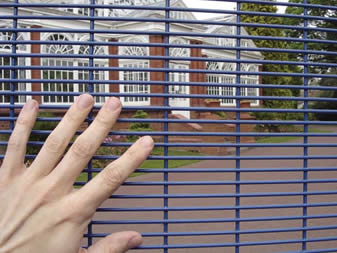

  1. Anti-climb: More small openings, no toe or finger holds.
  2. Anti-cut: robust wire and welded joints make cutting very difficult.
  3. High-strength: The superior welding technique and process control create a stronger fusion between the wires.

Finish treatment: There are two treatment types: hot dipped galvanized and plastic coated.
The colors of plastic coated are mainly green and black. Each color is available according to your require.

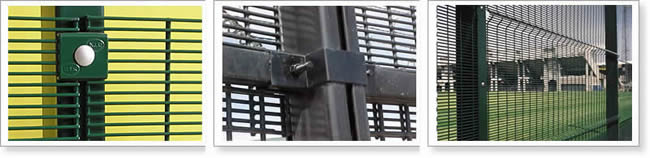

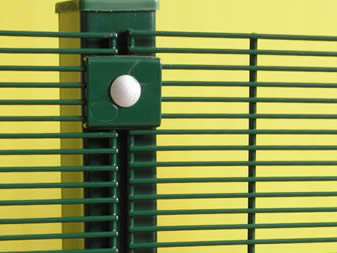

Connection type of host and fence panels, as follows:

 High Security 358 Fence

Post type:

The post type is main square post. The feet are combined with cement support with the rivet.

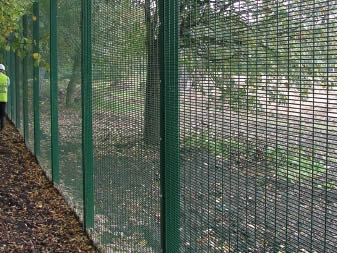

High Security 358 Fence Applications:

  1. Bridge anti-climb guarding & guard safety screening
  2. Psychiatric hospital security fencing
  3. Prison security fencing
  4. Factory machine guards
  5. Walkway security fencing
  6. Airport security fencing
  7. Shipping Port Security fencing
  8. Electrical sub-station fencing
  9. Gas pipelines security fence
  10. High security living area and private field fence.
Panels Post
Fence Panel Size Post Size Post Height Total Number of Fixings
Height Height/Width Length/Width/Thickness Inters- 1 clamp Corners-2 clamp
m mm mm   mm
2.0 2007 × 2515 60×60×2.5mm 2700 7 14
2.4 2400 × 2515 60×60×2.5mm 3100 9 18
3.0 2997 × 2515 80×80×2.5mm 3800 11 22
3.3 3302 × 2515 80×80×2.5mm 4200 12 24
3.6 3607 × 2515 100×60×3mm 4500 13  26
3.6 3607 × 2515 100×100×3mm 4500  13 26
4.2 4204 × 2515 100×100×4mm 5200 15 30
4.5 4496 × 2515 100×100×5mm 5500 16 32
5.2 5207 × 2515 120×120×5mm 6200 18 36
